Above 65% of recent broadband deployments in urban U.S. projects now call for fiber-to-the-home. That accelerated move toward full-fiber networks underscores the urgent need for dependable line output equipment.
Fiber Cable Sheathing Line
Fiber Draw Tower
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable production line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines as well as control systems. It manufactures drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, and LANs.
That high-performance FTTH cable making machinery offers measurable business value. This system provides higher throughput and consistent optical performance using low attenuation. This system additionally complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs as well as material waste through automation. Full delivery services cover installation together with operator training.
The FTTH cable production line package contains fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model provides on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It serves the needs of both residential and enterprise deployments in the United States.
Below, we review the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor and drop cables.

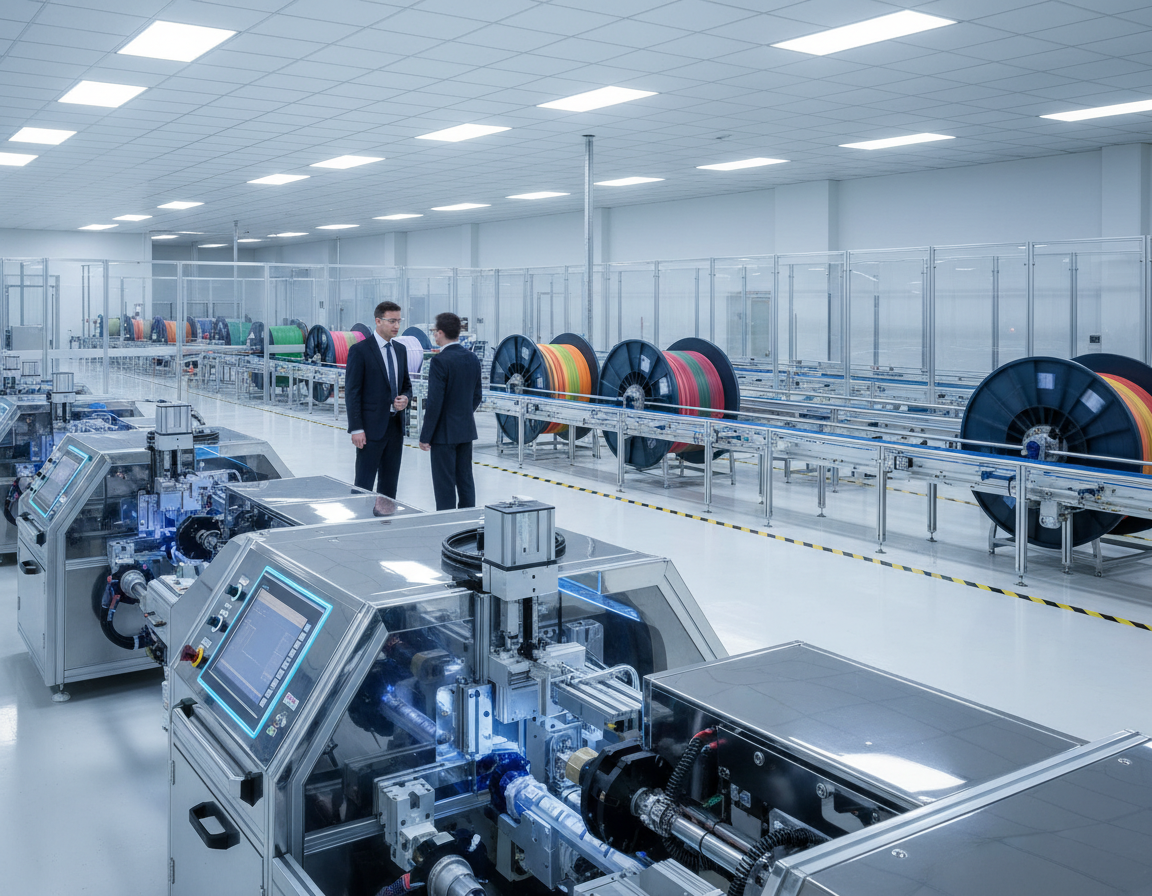

SZ stranding lines employ servo-controlled pay-off together with take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines rely on multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs together with UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics together with modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This transition supports automated fiber optic cable line output together with reduces labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing together with water cooling speed up profile stabilization while reducing energy employ. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, together with aging data.
| Function | Typical Equipment | Advantage |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Uniform core size and low attenuation |
| Coating stage | Dual-layer UV curing coaters | Consistent 250 µm coating for durability |
| Identification coloring | Multi-channel coloring machine | Accurate identification for splicing and installation |
| SZ stranding | SZ line with servo control for up to 24 fibers | Stable lay length for ribbon and loose tube designs |
| Extrusion & sheathing | Multi-zone heated energy-saving extruders | Precise jacket dimensions in PE, PVC, or LSZH |
| Protection armoring | Steel tape/wire armoring units | Enhanced mechanical protection for outdoor use |
| Cooling and curing | Cooling troughs plus UV dryers | Rapid stabilization and fewer defects |
| Testing | Inline geometry and attenuation measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, as well as surface quality. That protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single together with dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer featuring a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-output quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime together with precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws as well as barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron offer robust control and monitoring for continuous runs.
Operational parameters support preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable together with supports reliable fast-cycle fiber optic cable manufacturing.
Fiber Draw Tower And Preform Processing
This fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. That step sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output output quality supports single-mode fibers such as ITU-T G.652D together with bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Key Feature | Main Purpose | Target Value |
|---|---|---|
| Multi-zone heating furnace | Consistent preform heating to stabilize glass viscosity | Uniform draw speed with controlled refractive profile |
| Online diameter feedback control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Managed tension and cooling | Reduce microbends and maintain fiber strength | Specified tension per fiber type |
| Automated pay-off integration | Smooth transfer to coating and coloring | Matched feed rates to avoid slip |
| On-line test stations | Verify loss, strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment employs servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control together with allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration using a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels together with quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min supports color and adhesion stability for both ribbon together with counted fibers.
The next sections review standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model cuts ramp-up time as well as enhances the reliability of fiber optic cable production equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling using SZ stranding as well as sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility featuring armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime as well as protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Advanced data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This approach uses parallel processes and precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy together with speed in line output. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, together with shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances and material choice. Extrusion as well as buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible with MPO trunking as well as high-count backbone systems.
Production controls together with speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration using sheathing and testing stations support bespoke fast-cycle fiber cable line output line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber System | Benefit for Data Centers |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Typically up to 600–800 m/min | Greater throughput for large-scale deployments |
| Core processes | Automated alignment, bonding, and curing | Extrusion, buffering, tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Material set | Specialized tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long-term reliability and safety compliance |
| Quality testing | Real-time attenuation and geometry inspection | Dimensional control and tension monitoring | Reduced field failures and faster deployment |
| Line integration | Integrated sheathing with splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. This testing regime verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor together with inverters from Shenzhen Inovance ensure stable operation together with easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. Such support reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, together with ribbon units. This system also includes sheathing, armoring, together with automated testing for consistent fast-cycle fiber production. A complete fiber optic cable production line is designed for FTTH as well as data center markets. This system enhances throughput, keeps losses low, together with maintains tight tolerances.
For U.S. manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co deliver integrated solutions. These systems simplify automated fiber optic cable manufacturing together with reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 as well as ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs as well as turnkey proposals, and schedule engineer commissioning together with operator training.
