About 65% of U.S. homes constructed before 1980 use copper in part of their water supply system. That highlights the long-term importance of copper pipe fittings in modern and legacy plumbing systems. This guide explains the key copper fittings commonly found in plumbing. These fittings are used to join, redirect, and control the flow of water, gas, and refrigerant. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Website about 5/8 Copper
Contractors and DIYers prefer copper for its durability, heat tolerance, and water quality benefits. When installed correctly, copper fittings can last decades. This makes them a cost-effective choice for many projects.
In this article, we will explain how to identify fittings by both function and size. We’ll also compare soldered versus mechanical connections. You’ll learn how to find compatible parts through trusted suppliers like Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Reasons To Choose Copper
Copper pipe fittings are a popular choice in both residential and commercial plumbing. Their combination of strength, workability, and long-standing performance makes them ideal for various systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
Benefits Of Copper
Copper is well known for being both durable and malleable, allowing fittings like elbows and tees to be shaped without cracking. Because it can withstand high temperatures, it works very well in hot-water supply systems and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. It can be connected using solder, press systems, compression methods, or push-fit solutions, giving installers more flexibility.
Longevity And Corrosion Resistance
Copper tubing can last between 70 to 80 years when installed correctly. As copper oxidizes, it forms a protective patina that helps limit deeper corrosion and improve service life. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Where Copper Outperforms Other Materials
Copper surpasses many alternatives in hot-water systems, refrigeration lines, and high-pressure applications. For HVAC and refrigeration systems, pipe 5 8 and copper tube 5/8 are often used in refrigerant circuits for dependable performance under heat and pressure. Copper fittings can tolerate higher temperatures and retain rigidity under stress better than PVC or PEX. Compared with multilayer or composite pipes, copper is less vulnerable to impact damage and has a long, proven history in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | High tensile strength and wear resistance | Hot-water supply, boiler loops |
| Heat tolerance | Handles high temperatures without softening | Water heaters and HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long supply runs in homes |
| Joining options | Soldering, brazing, compression, push-fit, and press methods | New installations and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits and tight commercial runs |

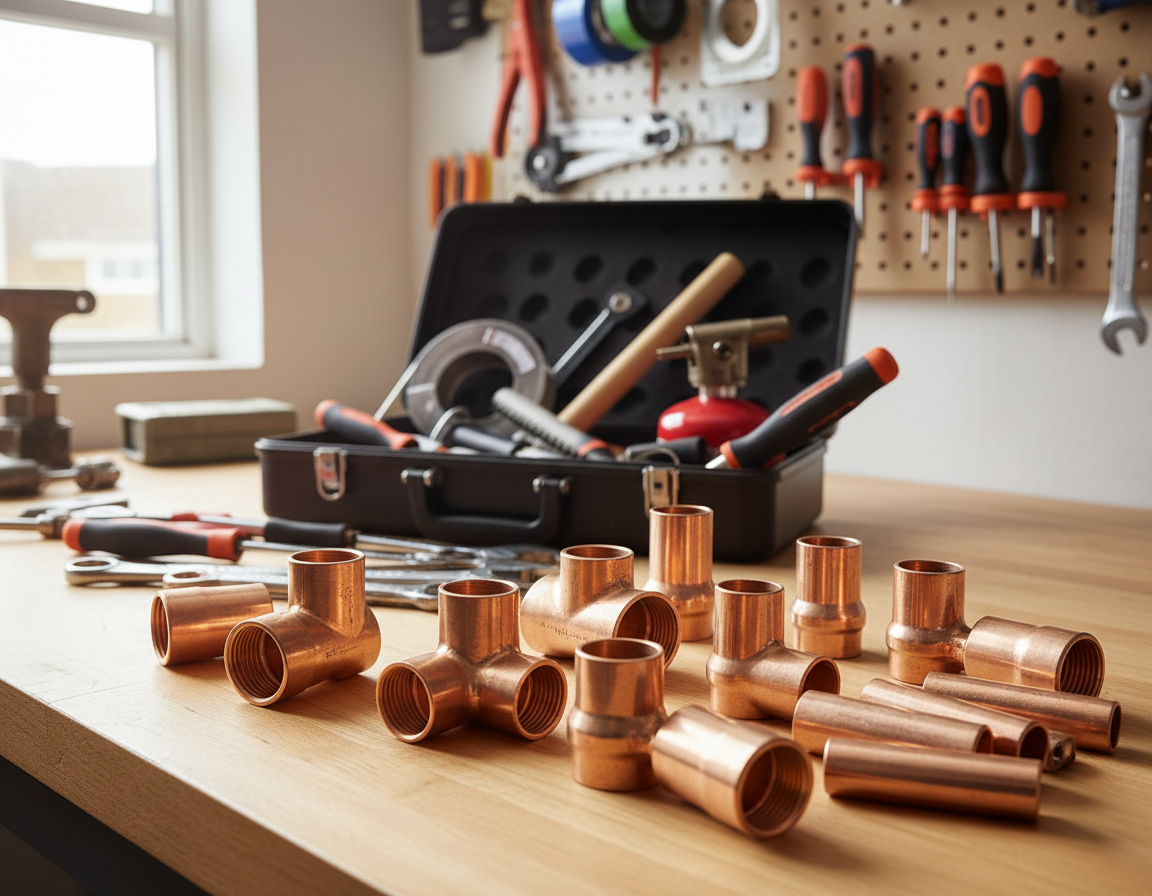

Common Copper Pipe Fittings For Supply Lines
Choosing the right copper fittings is key to a successful project. Here we cover important fittings used in water supply lines, including those for directional changes and service access. When planning, remember to consider pipe size, connection style, and material compatibility.
Elbows, Tees, And Crosses For Direction Changes And Branching
Elbows are used at 90°, 45°, and 22.5° angles to direct flow around corners. They are essential when routing around obstacles or following wall lines. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Crosses provide four-way connections and are useful where multiple lines intersect.
These fittings are available in several styles, including sweat/soldered, press, and compression. Select the connection method that works best with your copper pipe connectors and the installer’s skill set.
Couplings, Adapters, And Unions For Joining And Maintenance
Copper couplings connect two pipe lengths of the same diameter. Reducing couplings handle different sizes. Adapters are used to convert between materials and thread styles, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They’re perfect for where a valve or fixture needs periodic removal. Make sure unions and adapters match the pipe OD or nominal size to avoid leaks.
Caps, Plugs, And Clean-Outs Used For Sealing And Access
Caps are used to seal the end of a line, while plugs thread into fittings to close off branches. Both fittings are commonly used for pressure testing and temporary shutoffs. Clean-outs provide access to drain lines for maintenance and blockage removal.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Confirm whether the fitting size is referenced by nominal size, OD, or ID, because this is critical for 5 8 copper fittings and other sizes.
During project planning, ensure that copper pipe connectors, couplings, adapters, and unions all match the pipe type. This helps prevent fit problems and makes maintenance easier.
Copper Compression And Push-To-Connect Connections
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. They are ideal when a soldering torch is impractical or when a quick fix is necessary. Below, we explain how each system works, where it is best used, and the key installation tips for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
Compression fittings use a nut and a ferrule to create a seal. When the nut is tightened, the ferrule compresses around the tube and bites into the copper. The result is a leak-resistant connection that does not require heat. They are commonly used on supply lines and in repair situations where a torch is not feasible.
These joints work well across multiple sizes, including 5 8 copper pipe fittings. Because they can be disassembled when installed correctly, they are well suited to accessible valves and meter connections.
Push-To-Connect Fittings For Quick Installations
Push-to-connect copper fittings, often called quick-connect fittings, let you insert a deburred tube into the fitting body until it clicks. No soldering, crimping, or special tools are needed. This ease of use makes them popular among both DIYers and professionals working in confined areas.
These fittings are available for common sizes such as 5/8 copper tube. Many manufacturers publish pressure and temperature ratings for them. It’s essential to match the fitting to the tubing type and follow the manufacturer’s depth guidelines for reliable performance.
Why These Fittings Are Better Than Solder In Some Jobs
Compression and push-fit copper fittings eliminate the need for a torch, flux, and open flame. This reduces fire risks in occupied buildings and accelerates retrofit projects. They also save time during emergency repairs and in areas with limited clearance.
It is important to remember that mechanical fittings may cost more per unit and can have lower temperature limits than soldered joints. Always verify the ratings before using quick-connect fittings on high-pressure or hot-water lines. When used correctly, these fittings offer a flexible, safe alternative to soldering in many plumbing applications.
Sweat And Soldered Fittings For Copper Pipe
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. This method is common in HVAC and refrigeration work. Both approaches can create long-lasting, durable joints when performed correctly.
Overview of techniques
Sweat copper fittings rely on solder to fill the gap between the copper tube and the fitting. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The decision between these methods depends on the system requirements and local code rules.
Tools And Safety Gear
Important tools include a tube cutter, deburring tool, wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is used for soldering, while MAPP or acetylene is better for brazing. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Soldering Tips Step by Step
- Square-cut the copper tube 5/8 section, then deburr the edge for a proper fit.
- Use emery cloth or a wire brush to clean both the pipe and fitting until bright copper is visible.
- After applying flux to the cleaned surfaces, assemble the joint and twist it slightly to distribute the flux.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Apply solder or brazing rod at the joint, then allow capillary action to draw the filler through the seam.
- Allow the joint to cool naturally, and then clean away soot and flux residue with a suitable cleaner.
When Soldered Fittings Are The Right Choice
Choose copper solder fittings when you need a permanent, dependable joint in potable-water systems and moderate-temperature applications. Brazing is generally better for HVAC or refrigeration systems where greater temperature resistance is required. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Practical Considerations
Skilled technique is essential to avoid cold joints and porosity. Each joint should be checked for complete solder coverage, and the system should be pressure-tested before concealment or insulation. Sweat copper fittings remain a standard choice for many plumbing jobs, while brazing copper pipe is ideal in demanding HVAC and refrigeration applications where durability matters most.
Specialty Copper Fittings Used In Refrigeration And HVAC
To move refrigerant safely, refrigeration and HVAC systems depend on precisely sized tubing and fittings. Technicians select materials and connection styles according to pressure, code requirements, and service access. Understanding common sizes and fitting styles helps avoid leaks and service headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. It’s important to confirm whether the spec refers to outside diameter (OD) or nominal size before ordering parts.
5 8 copper tube must be paired with fittings sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
For refrigerant lines, precise bends and consistent wall thickness are essential. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. The 5/8 OD copper tubing size is commonly used for designing service valves, filter driers, and meters.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
Flare fittings create a seal by compressing a flared tube end beneath a flare nut. Technicians prefer flare fittings where serviceability is important, such as around gauges and access panels. Flare joints can be hand-tightened for field servicing.
Bite-type fittings use a ferrule that bites into the tube wall when tightened. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. These fittings are valued in mobile applications because they assemble quickly and resist vibration well.
Brazed fittings form metallurgical joints that are strong and leak-resistant. For HVAC systems exposed to high pressures or elevated temperatures, brazed connections are often required. Brazing may be required by manufacturers or code rules for some refrigerants and high-pressure circuits.
Sizing Notes: 5 8 Copper OD, ID, And How To Select Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. A 5/8 id pipe has a smaller OD than tubing labeled 5/8 OD. Checking both OD and ID prevents fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, and brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation Note | Verify flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure rating suitability | High-pressure refrigerant circuits with correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
When choosing parts, match the tubing OD to the fitting spec and select copper pipe fittings refrigeration products that list compatibility with 5/8 od copper tubing. Maintain a stock of bite-type fittings and flare fittings for field repairs. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
How To Choose The Right Copper Fitting: Material, Sizing, And Code Requirements
Choosing the right copper fitting involves precise measurements and understanding performance ratings. You must read labels carefully to determine whether they refer to outside diameter or nominal sizing. This step is critical to avoid leaks and ensure the fitting matches the system’s needs.
Outside diameter is the sizing basis for many refrigeration and HVAC parts. For example, 5 8 copper pipe od is a common size in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. Always check the manufacturer’s notes for 5/8 in copper pipe sizing before making a purchase.
When fitting pipe to fittings, verify whether the tubing is listed as 5 8 id tube or 5 8 od tubing. Different fitting types, including compression, sweat, flare, and brazed, require their own preparation steps and clearances. Choose the fitting method that matches the application and the required pressure level.
Material choice and joint type are determined by system pressure and temperature. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. High-pressure refrigerant lines benefit from flare or brazed joints. Brass adapters are ideal for transitioning between copper and other metals.
Local plumbing codes also play a significant role. Check local plumbing codes copper fittings requirements before you start any work. Some jurisdictions require brazed joints for HVAC refrigerant systems or restrict mechanical fittings in concealed locations. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
When selecting the best copper fittings, purchase from reputable suppliers like Ferguson or Grainger and follow manufacturer instructions. If in doubt, consult a licensed plumber or HVAC technician to confirm the fit and rating. That approach can help you avoid costly rework later.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing type | 5 8 copper pipe od | High-pressure refrigerant lines | Fittings usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing, nominal | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fittings | Marked by tube OD or nominal ID | Retrofit work and quick repairs | Good for low-to-moderate pressure; follow torque specs |
| Sweat or soldered fittings | Usually listed by nominal size | Hot-water systems and durable joints | Requires proper flux, heat, and cleaning for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in certain specifications | Refrigeration and fuel lines | Do not mix flare and compression unless rated for both |
| Required certifications | UPC and NSF/ANSI | Potable-water systems | Required by many local plumbing codes copper fittings rules |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. This approach helps you select copper fittings that perform well and comply with local regulations.
Copper Fittings: Installation Tips, Common Mistakes, And Maintenance
Preparation is key to avoiding failures. Following basic installation tips for copper fittings can greatly reduce leaks and rework. The decisions made during assembly have a major impact on long-term system performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, Deburring, And Cleaning Before Assembly
Use a proper tube cutter first to make sure the cut is square. Once the pipe is cut, remove burrs and copper shavings from the end and the pipe ID. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. That step is necessary so flux and solder can flow evenly. If preparation is skipped, capillary action can be compromised and leaks may occur.
Proper use of flux, heat, and solder; avoiding cold joints and leaks
Apply flux evenly to both mating surfaces before assembling the joint. Then heat the fitting evenly. To distribute heat uniformly while soldering copper pipe, keep the flame moving. Apply solder to the heated seam so capillary action can draw it in. Avoid overheating, which can burn flux and weaken the joint, and underheating, which causes cold joints that leak.
Teflon tape, thread sealants for threaded copper fittings, and avoiding overtightening
For threaded copper fittings, use Teflon tape or a compatible pipe thread sealant on male threads. Wrap the tape clockwise to ensure it stays in place while threading. Never overtighten, as excessive torque can strip threads or crack fittings. With compression fittings, follow the manufacturer’s turn count or torque specification to avoid crushing the ferrule.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Copper fittings should be inspected regularly for pinhole leaks, corrosion, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. Fittings should be replaced when leaks continue after tightening, when corrosion is visible, or when a system is upgraded to current standards.
Common mistakes include neglecting cutting, deburring, and cleaning, mixing OD and ID sizing conventions, overheating during soldering, and ignoring manufacturer pressure limits. Reliable systems depend on following product instructions and keeping spare parts from trusted suppliers such as Mueller Industries or Viega.
Conclusion
Copper pipe fittings are valued in plumbing and HVAC because of their durability, heat tolerance, and long service life. Whether you choose soldered joints, compression fittings, push-to-connect fittings, flare connections, or brazed assemblies depends on the details of the job. Correctly matching the fitting size and type is critical. Be mindful of OD versus ID sizes, like 5/8, to avoid errors.
As you select copper fittings, make sure they satisfy local codes, pressure ratings, and material standards. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. They provide compatibility charts and certification details to help guide your selection for any plumbing project.
Proper preparation and installation are essential for a long-lasting system. Start by cutting, deburring, and cleaning the pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. To maintain a safe, leak-free system, carry out regular inspections and replace worn fittings on time.
